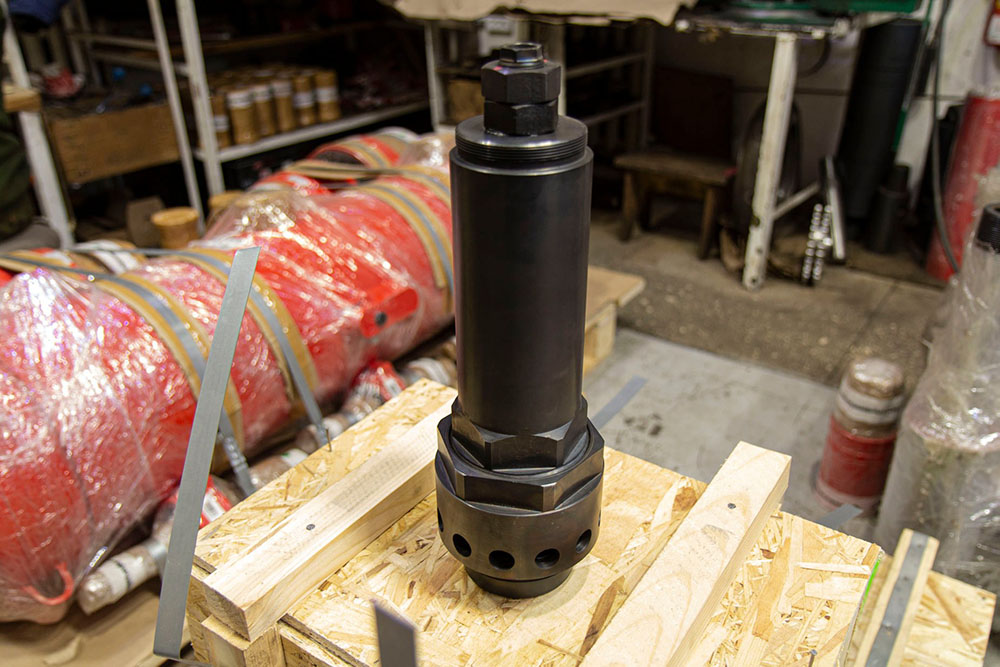

KPP-R1 - spring pressure relief valve
Designed to protect equipment from unacceptable pressure by releasing excess working fluid, ensures cessation of discharge at closing pressure and restoration of working pressure.
KPP-R1 - spring pressure relief valve
Designed to protect equipment from unacceptable pressure by releasing excess working fluid, ensures cessation of discharge at closing pressure and restoration of working pressure.
The relief valve ensures tightness in the gate at the setting pressure (operating pressure).
The valve is adjusted so that the specified valve capacity is achieved at full opening pressure.
Relief valve specifications
Open execution
| Parameters | KPP-32R1-2,0 | KPP-50R1-2,0 |
| Throughput, NCM per hour, not less than | 450 | 1100 |
| Set pressure, kg/cm2 | 1,9 | 1,9 |
| Relieving pressure, kg/cm2, no more than | 2,0 | 2,0 |
| Reseating pressure, kg/cm2, no more than | 1,7 | 1,7 |
| Connecting thread at the input | OD thread G1 1/4" | ID thread G2" |
| Thread height at the input, mm | 18 | 27 |
| Height, mm | 134 | 356 |
| Weight, kg | 0,76 | 9,49 |
Closed execution
| Parameters | KPP-32-50R1-2,2 | KPP-32-50R1-2,7 |
| Throughput, NCM per hour, not less than | 600 | 650 |
| Set pressure, kg/cm2 | 2,2 | 2,7 |
| Relieving pressure, kg/cm2, no more than | 2,45 | 3,0 |
| Reseating pressure, kg/cm2, no more than | 1,8 | 2,2 |
| Connecting thread at the input | OD thread G1 1/4" | OD thread G1 1/4" |
| Thread height at the input, mm | 19 | 19 |
| Connecting thread at the outlet | ID thread G2" | ID thread G2" |
| Thread depth at outlet, mm | 22 | 22 |
| Distance from the valve axis to the outlet end, mm | 65 | 65 |
| Distance from the outlet axis to the inlet end, mm | 65 | 65 |
| Height, mm | 360 | 360 |
| Weight, kg | 5,4 | 5,4 |
